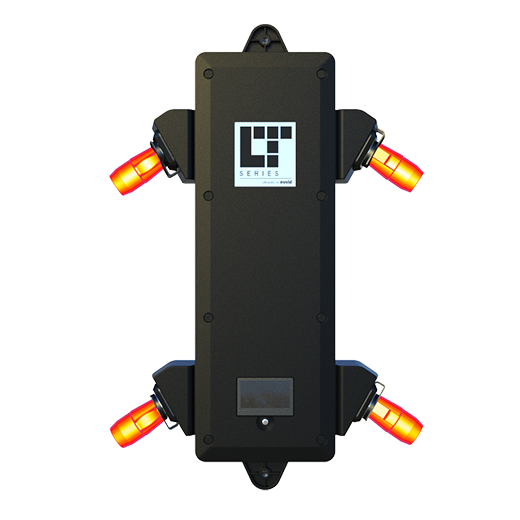

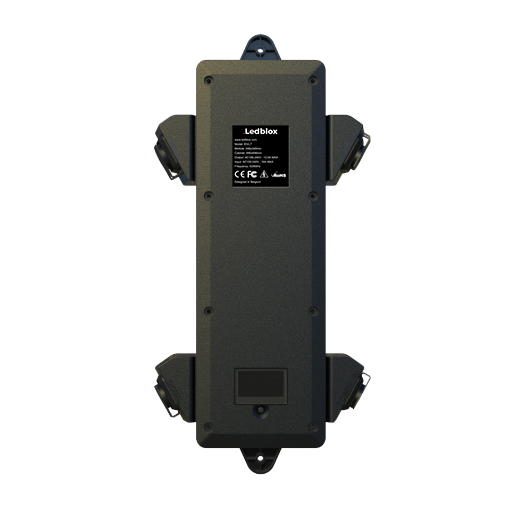

Brain Box
Box with hub, power supply, receiving card that can be removed from front or back.
Corner M6 or M8
M6 or M8 Bolts compatible with Exhibition frames of 55mm or 62mm for stacking
Signal Connector
Signal In, Signal Out connector
LCD Display
Showing Signal, Power, Temp, Working Hours Status
Strong Handle
2 Handles for easy install
Led Module
Led Modules with aluminium back-panel for improved flatness and heat dissipation
Power Connector
Power In, Power Out connector
M6 Hole for Frame connection
The Led Cabinet is 496x496mm with connection each 62mm which can be connected directly to the frames systems.
Damage Shifter
Defect status indication
Fast Locks
Led Display cabinets can be easily connected by fast locks.
Hdblox Indoor Pitch
P2.8 Indoor
EX281i
protective XGOB layer
176×176 pixels
P2.0 Indoor
EX206i
protective XGOB layer
240×240 pixels
P2.5 Indoor
EX258i
protective XGOB layer
192×192 pixels
Hdblox Outdoor Pitch
P4.4 Outdoor
EX443d
P2.8 Outdoor
EX281d
Protective XGOB layer
P2.5 Outdoor
EX258d
protective XGOB layer
EX series Modular
LT Modules<LT>
Modular Modules
LT Frame <LT>
Modular Frame
LT Box <RE>
Modular Brain / Power Box
Module – Frame <LT>
Magnet Module on Frame

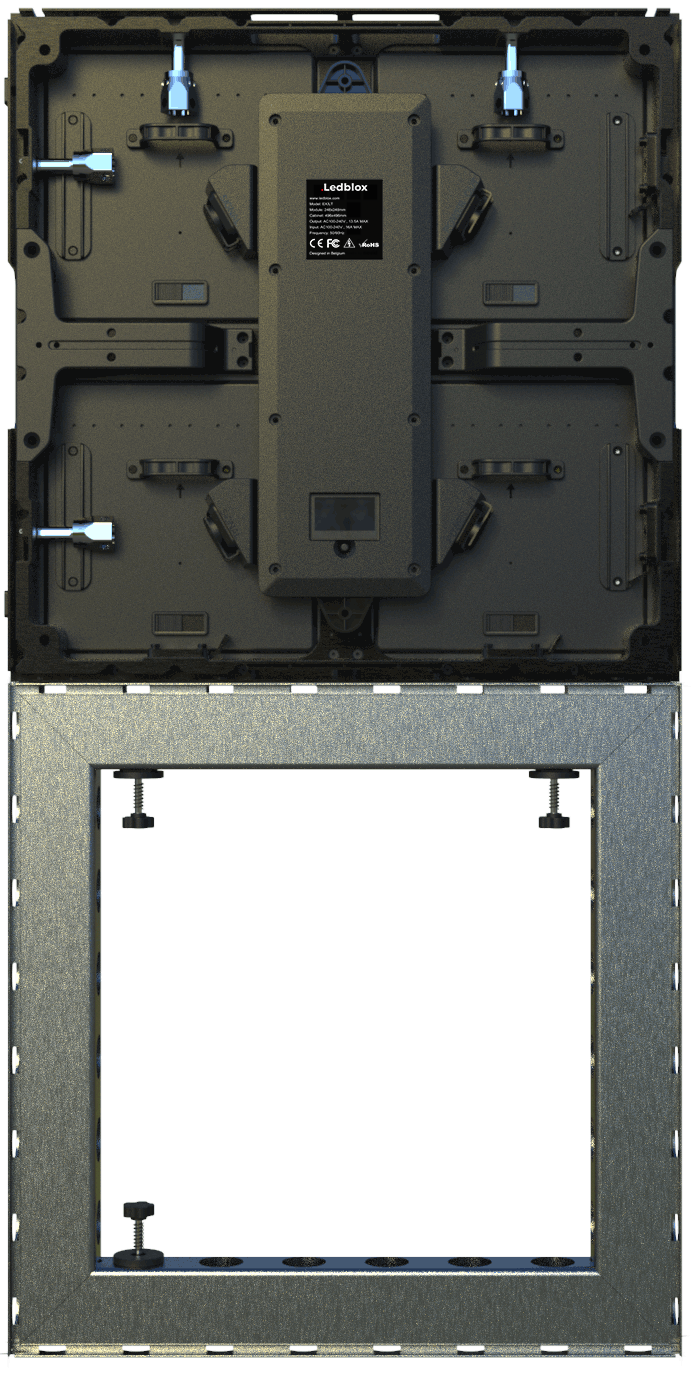

Frame – Box<LT>
Box Connected with Frame

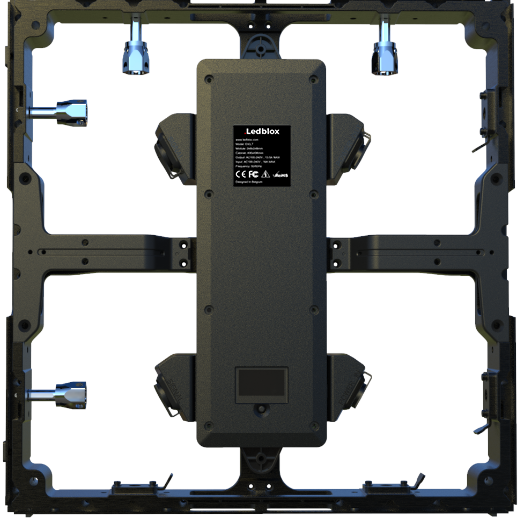

All Combined<LT>
Box Frame Module
Hdblox Maintenance

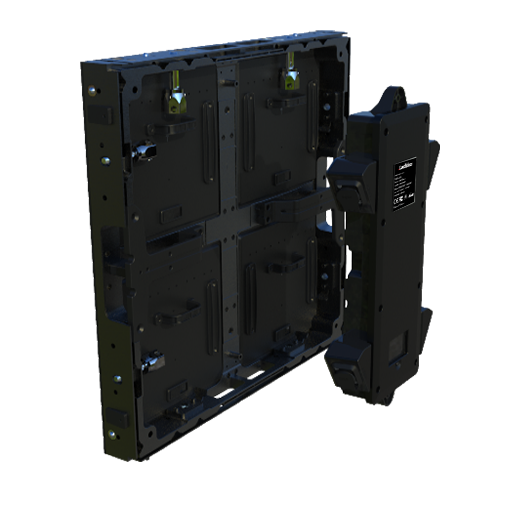

Back Remove Box
Remove the Smartbox from Back
Front Remove

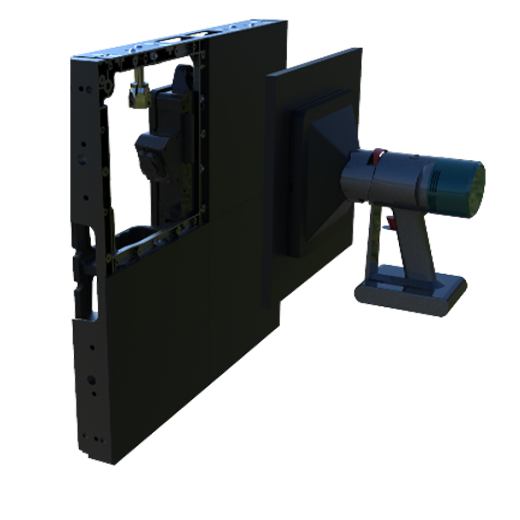

Front remove with Vacuum *Dyson
Front Remove Box
Remove the Smartbox from Front

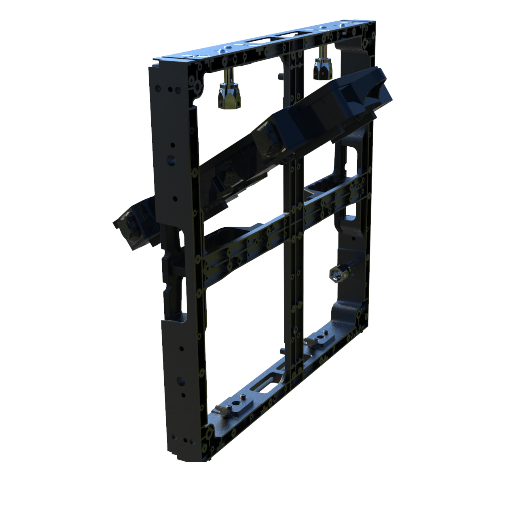

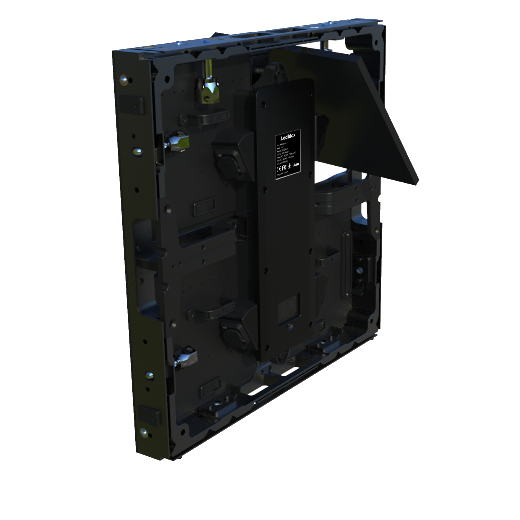

Back Remove Module
Remove the Module from Back

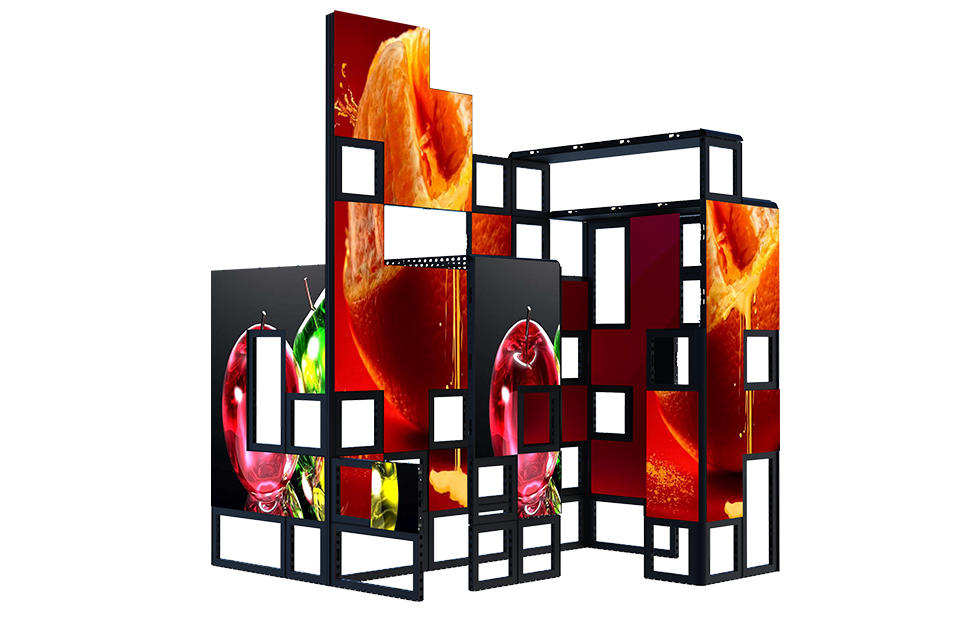

EX Cabinet and Frame
the EX cabinets are a perfect match to existing frames using the typical 62mm pattern like Matrixdecor, Aluvision and Bematrix.
Examples
Hdblox Accessories

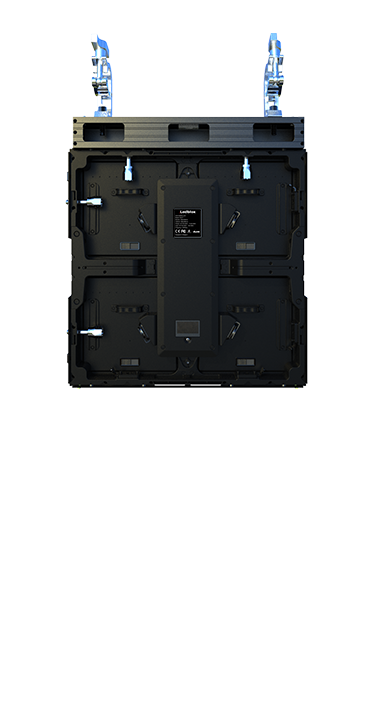

Hanging Bar
we provide hanging bars in any desired length. This allows customers to rig screen using a reduced number of chain hoists or (certified) steel slings.

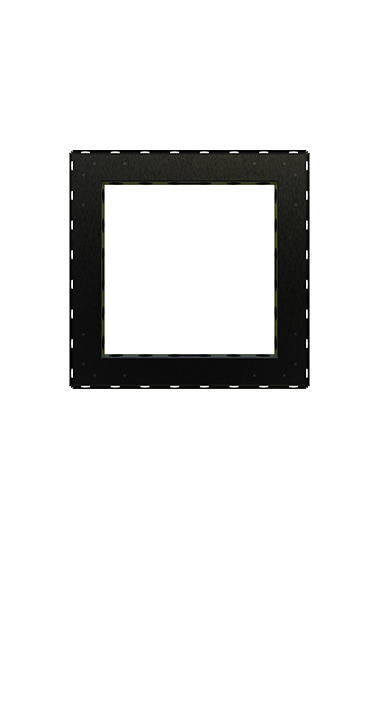

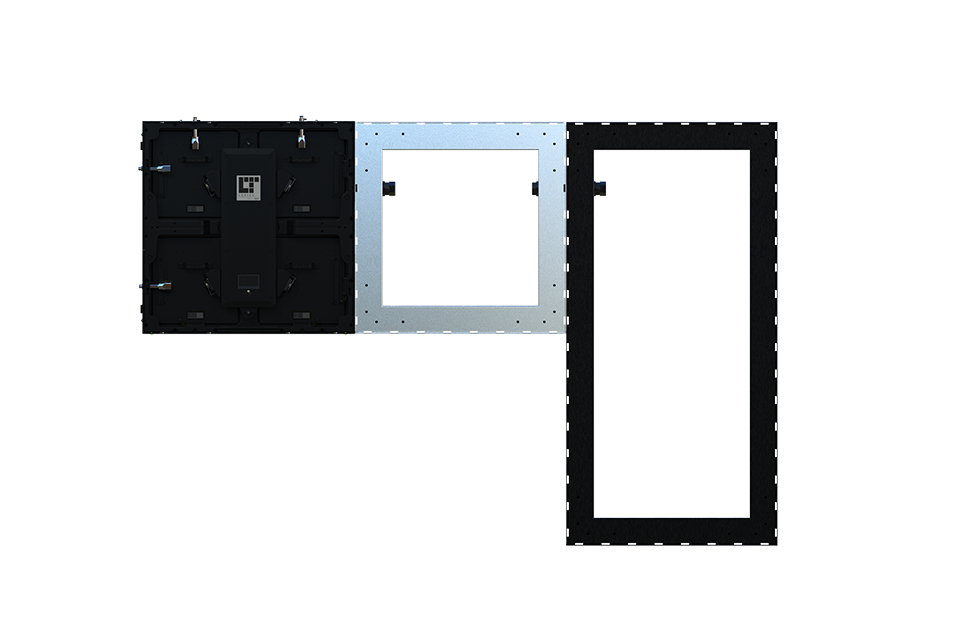

Frame(496*496mm)
Frame 496×496 : since the different brands of screen suppliers are able to sell you ANY size of frame you can imagine, we typically sell a certain selection of sleek, black coloured frames in a “multiple” of the dimension of the cabinet. So the 496x496mm frame is a “1×1” frame

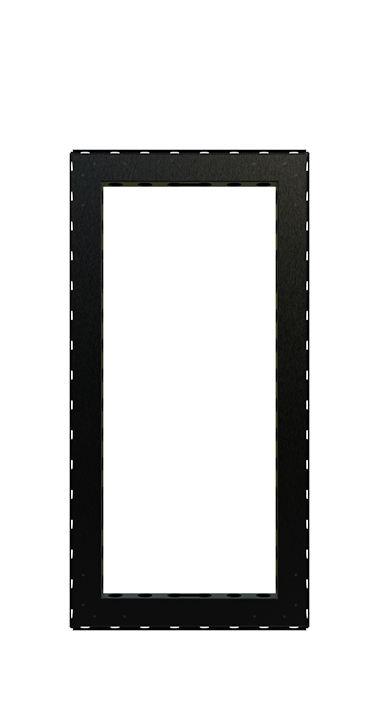

Frame(496*992mm)
Frame 496×992 : since the different brands of screen suppliers are able to sell you ANY size of frame you can imagine, we typically sell a certain selection of sleek, black coloured frames in a “multiple” of the dimension of the cabinet. So the 496x992mm frame is a “1×2” frame
Pinlox

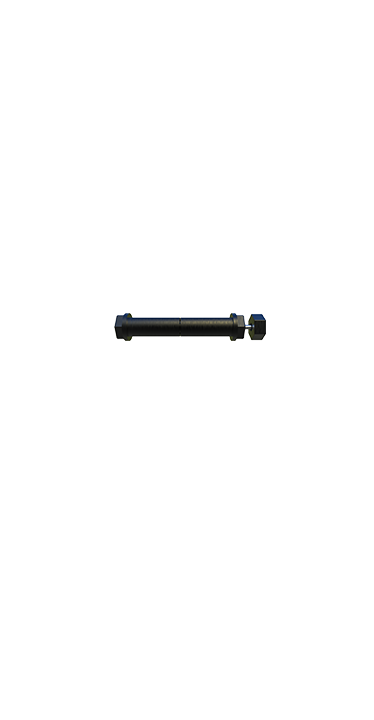

This smart connector combines a few functions. 1 Pinlox connector allows you to easily combine 2 frames or fix an Ledcabinet to a frame. The female part of the connector can be used to tighten the bolt of the male part. By combining the these two functions, you drastically save money, because others suppliers will sell you a separate tool for both functions. Ledblox provides you 2 functions for the price of 1 in a smart design. They are available in M6 version and M8 version
Frame Pole

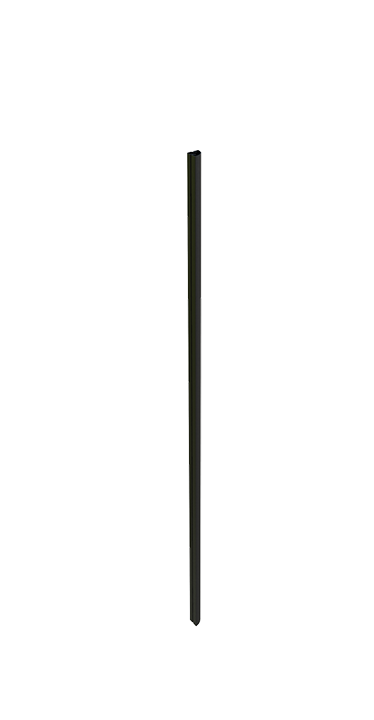

this quart-round aluminium profile has M6 thread on its 2 straight sides. This allows a smooth setup between the Ledcabinets and the perpendicularly placed screens which hide the back of the screen.
4-Sided Frame Pole
4-sided frame pole : this square aluminium profile has M6 thread on all 4 of its sides. This allows a smooth setup between the Ledcabinets and frames. A very handy tool for any creative setup you can imagine. It has a black anodized finish

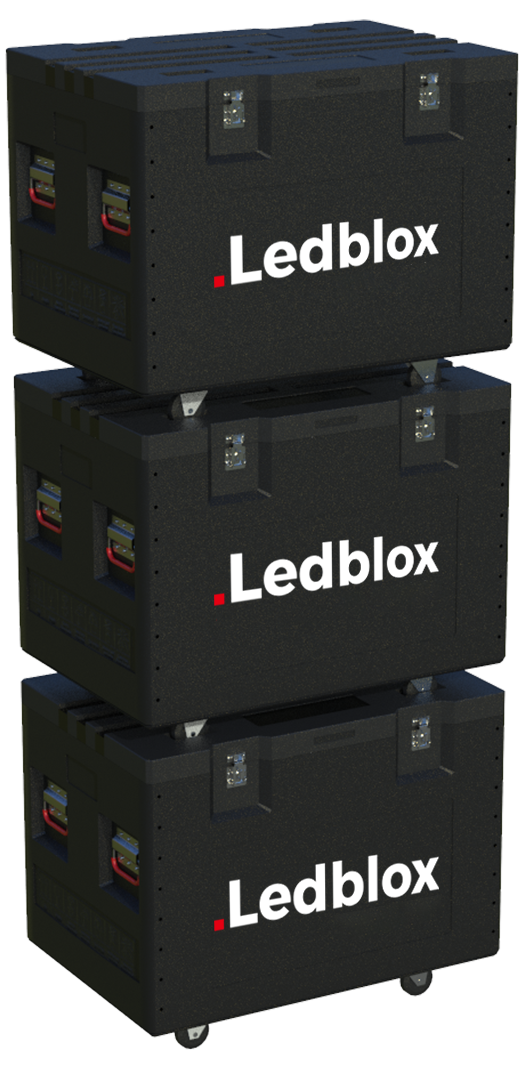

Hdblox Flightcase
Flightcase <BX1>

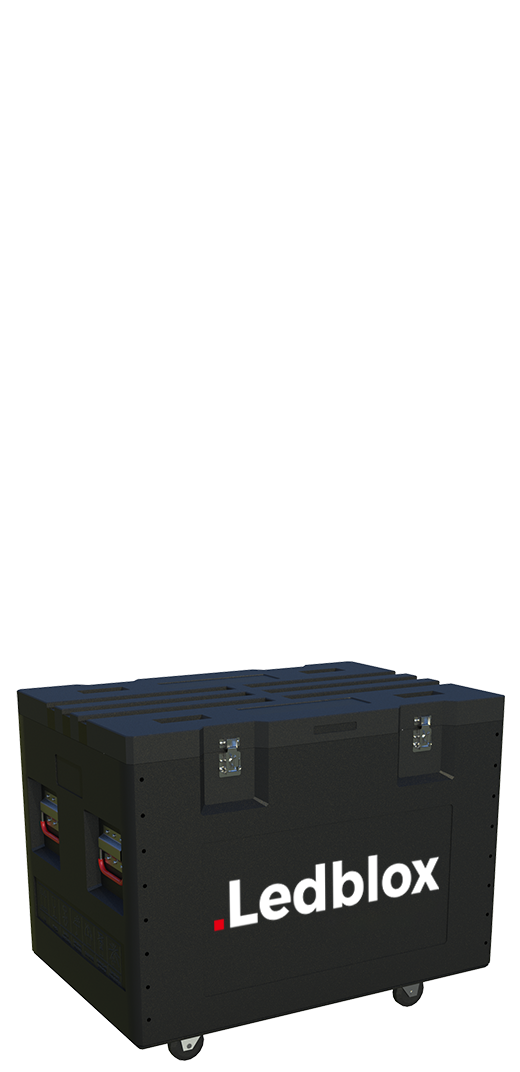

Flightcase 6pcs Cabinets
Flightcase <BX1>

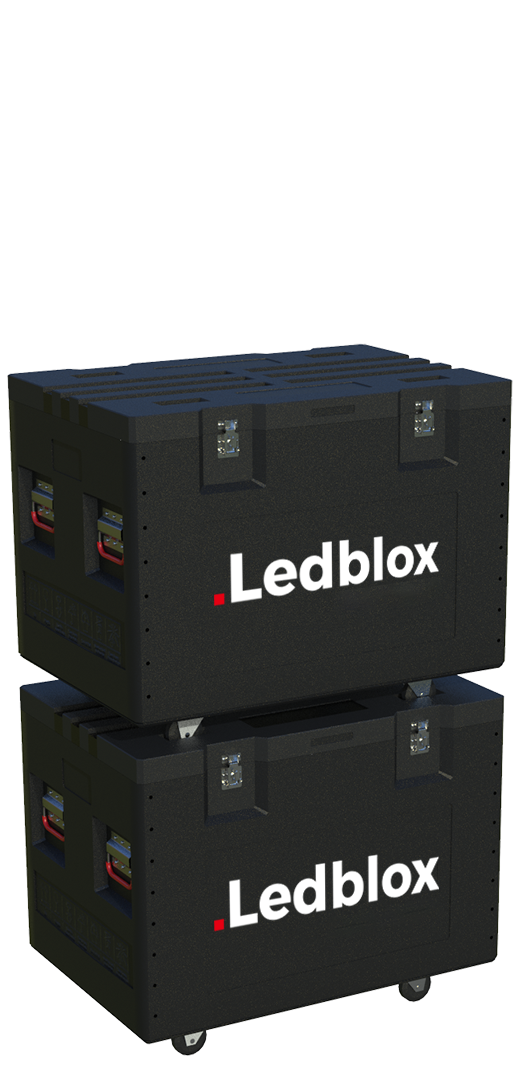

6+6pcs Cabinets
Flightcase <BX1>
6+6+6pcs Cabinets
Hdblox Flightcase

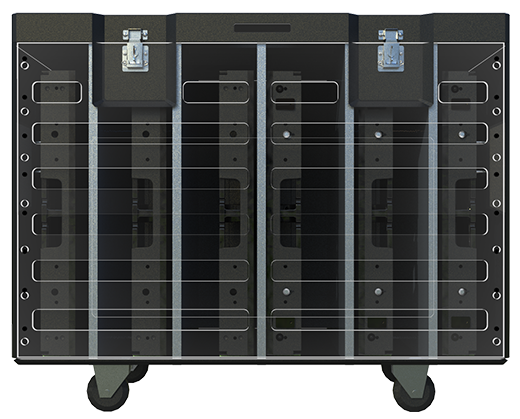

6 Cabinets into one Flightcase
HDBLOX OUTDOOR
| wdt_ID | Pitch | P2.5 | P2.8 | P4.4 |
|---|---|---|---|---|
| 1 | Series No. | LT250d | LT280d | LT440d |
| 2 | True Black SMD | - | - | >4000~4500cd/m² |
| 3 | Black Shell SMD | >5000cd/m² | >5000cd/m² | >5000cd/m² |
| 4 | Distance | >2.5m | >2.8m | >4.4m |
| 5 | LED kind | SMD1515 | SMD1515 | SMD1921 |
| 6 | Pixel Density | 148996 dots/m² | 125316 dots/m² | 51076 dots/m² |
| 7 | Technology | SMD, CCT | SMD, CCT | SMD, CCT |
| 8 | View Angle | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) |
| 9 | Refeshrate | >1920Hz-3840Hz | >1920Hz-3840Hz | >1920Hz-3840Hz |
| 10 | Module Size | 248x248mm | 248x248mm | 248x248mm |
HDBLOX INDOOR
| wdt_ID | Pitch | P2 | P2.5 | P2.8 |
|---|---|---|---|---|
| 1 | Series No. | LT200i | LT250i | LT280i |
| 2 | Black SMD | >1200cd/m² | >1000cd/m² | >1000cd/m² |
| 3 | Distance | >2m | >2.5m | >2.8m |
| 5 | LED kind | SMD1515 | SMD1515 | SMD2020 |
| 6 | Pixel Density | 250000 dots/m² | 160000 dots/m² | 125316 dots/m² |
| 7 | Technology | SMD,GOB | SMD,GOB | SMD,GOB |
| 8 | View Angle | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) | 160⁰(H)/160⁰(V) |
| 9 | Refeshrate | >1920Hz - 3840Hz | >1920Hz - 3840Hz | >1920Hz - 3840Hz |
| 10 | Module Size | 248x248mm | 248x248mm | 248x248mm |
| 11 | Cabinet Size | 496x496mm | 496x496mm | 496x496mm |
